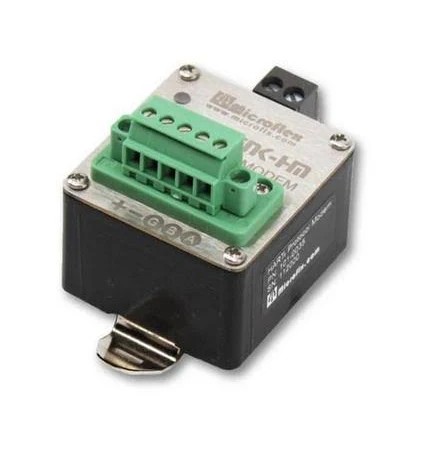

MicroLink HM 35 HART-MODBUS CONVERTER

Technicians are often faced with systems utilizing different protocols, and integrating those systems can be difficult and costly. The MicroLink-HM 35 is a HART modem which not only can be used to calibrate and configure your HART devices, but it can also store HART data retreivable via Modbus-RTU commands. This versatility allows users
to poll up to 16 HART devices within the same loop, and have a HART protocol modem for calibrations and
configuration.

PRODUCT DETAILS

FEATURES



  • DIN Rail Mounted (35mm)

  • Wide 5 to 30 Vdc supply range

  • LED provides HART communications status

  • Compatible with USB to RS-485 serial converter

  • RS-485 port can be set to standard baud rates from 1200 to 57600 O, E, N parity

  • Complies with HART physical layer

  • Transformer isolation simplifies loop connections and eliminates grounding effects

  • Use standard Modbus commands to read HART device process variables

  • Includes HM Configuration app
