| Technology |
Guided wave radar level transmitter based on Time Domain Reflectometry (TDR) technology |
| Application |
For liquids in storage and process applications, reactors and pressure vessels. Ideal for upstream production tanks & separators, midstream collection tanks, chemical storage and more! |
| Dielectric Constant |
≥1.3 (TBF 1.1) |
| Measurement Range |
0.3-60 m/0.98-196.85 ft |
| Accuracy |
±2 mm/±0.08” |
| Repeatability |
±1 mm/±0.04” |
| Interface |
Yes |
| Housing Material |
Polyester-coated Aluminum, 316L (with or without display) |

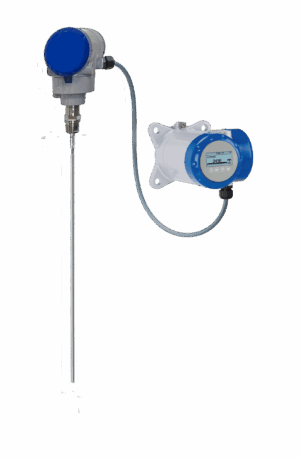

| Remote Housing |
Optional. Designed for viewing level up to 100m/328 ft from probe |
| Ingress Protection |
IP66/IP68, NEMA 4x/6P |

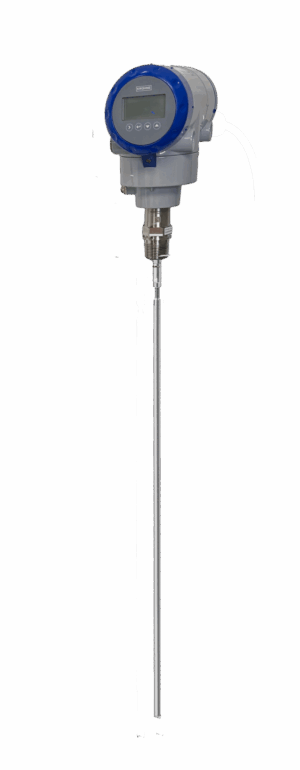

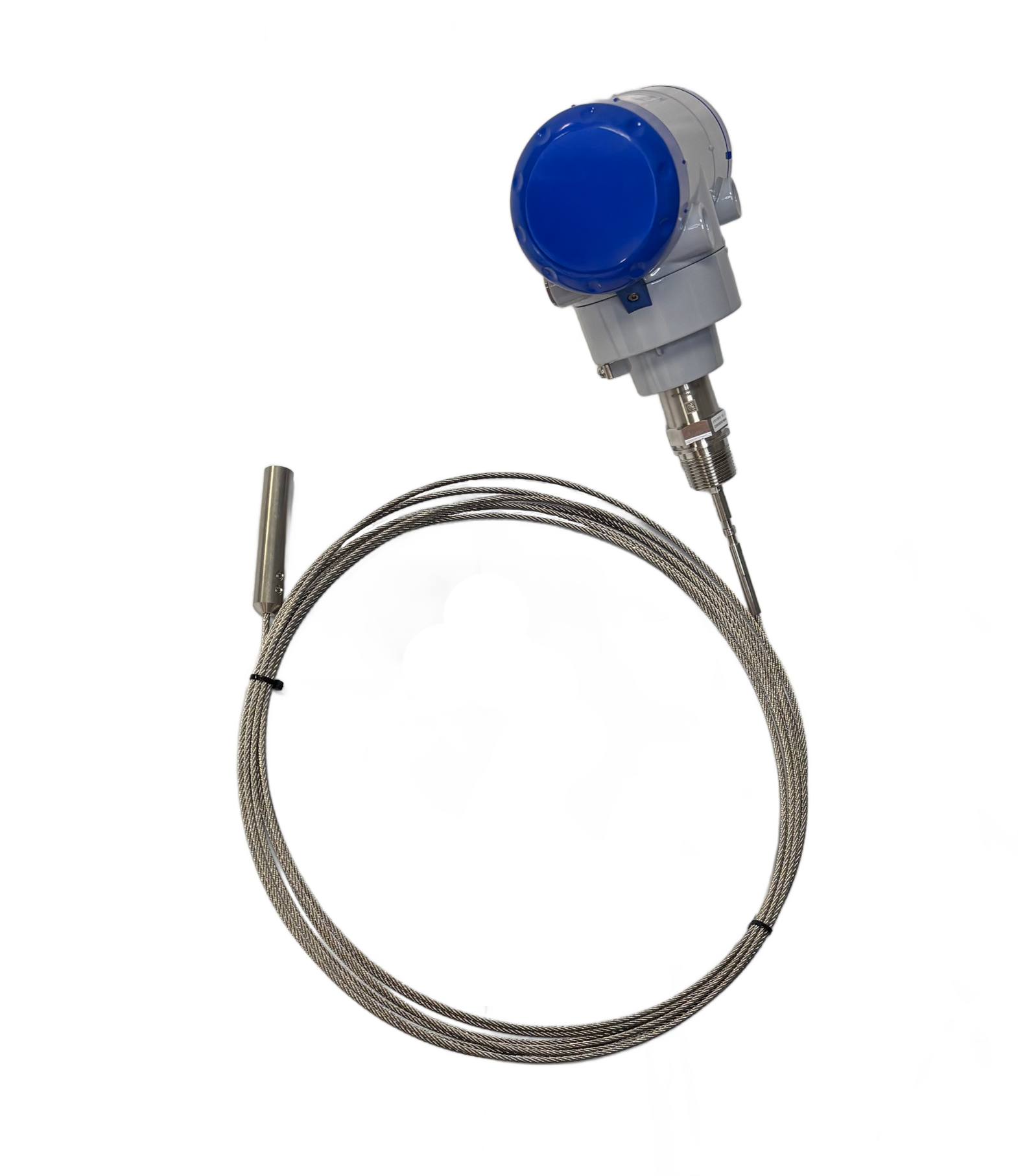

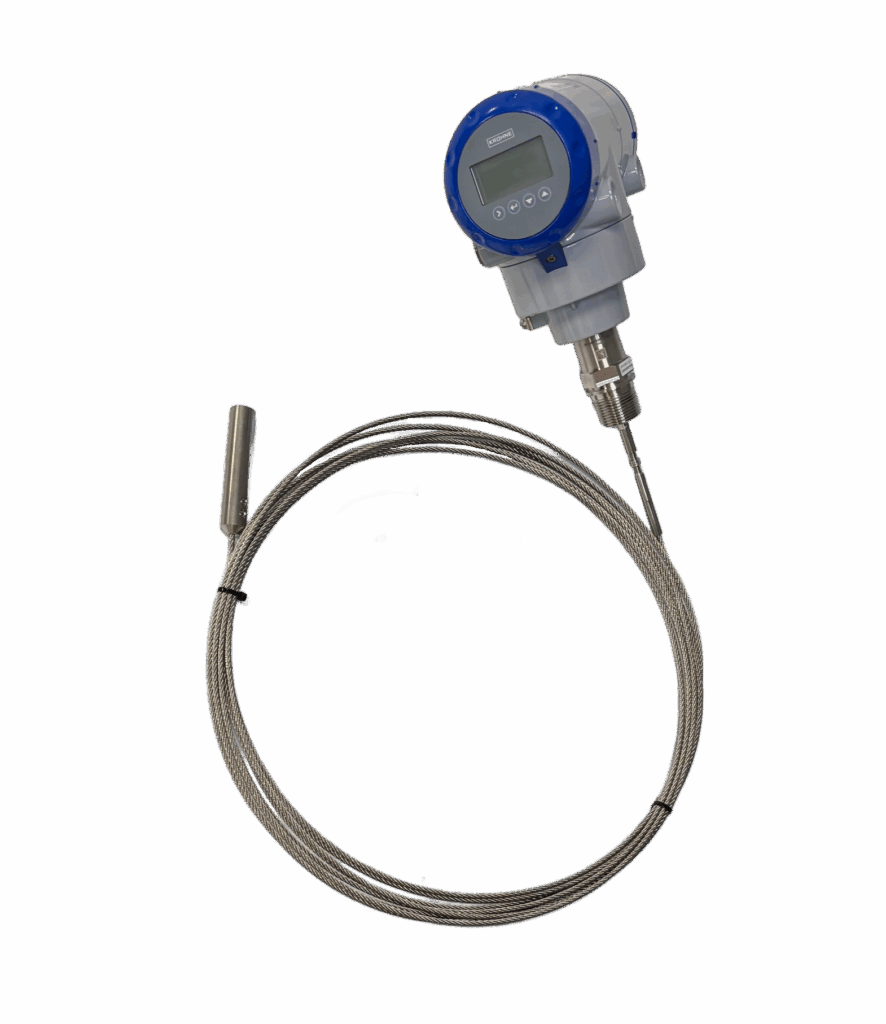

| Probe Type |
Single cable 316/316L or rod: 08mm/0.32” |
| Probe Treatment |
Treated with e9 Treatments to resist paraffin and other buildup (option for PTFE treated cable) |
| Process Connection |
Threaded: 1” NPT |
| Gasket |
PTFE process seal with FKM/FPM gasket, Ceramic process seal with FKM/FPM gasket |
| Ambient Temp. |
-40-+80°C/-40-+176°F; Integrated LCD display: -20 to +60°C |
| Process Temp. |
-40-+150°C/-40-+302°F; Option for -40-+200°C/-40-+392°F |
| Process Pressure |
-1-40 barg/-14.5-580 psig; Option for -14-1450 psig |
| Power Supply |
11.5-30 V DC (Exi), 13.5-34 V DC (Exd), 2-wire |
| Output |
1 x 2 Wire 4-20 mA passive (HART® 7); Option for 2 x 2 Wire 4-20 mA passive (HART® 7) plus second output ( 4-20 mA or relay; Optional HART to Modbus Translator (RS-485 Interface) |
| Approvals |
ATEX, IECEx, cQPSus, NEPSI, INMETRO, NACE, ASME B31.1, CE, EAC, NAMUR |
